Tripod Turnstile Gate | Secure Pedestrian Access Control

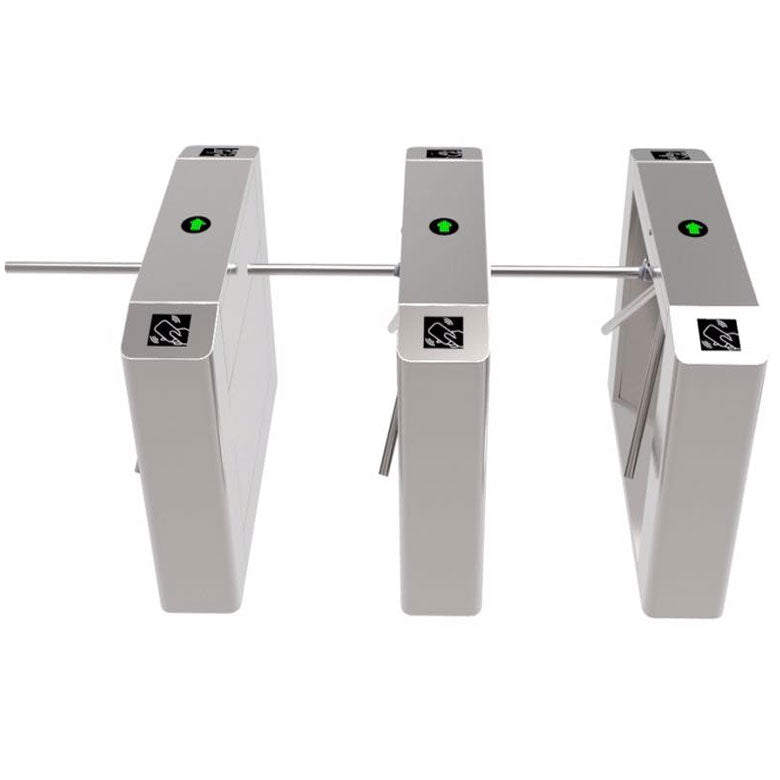

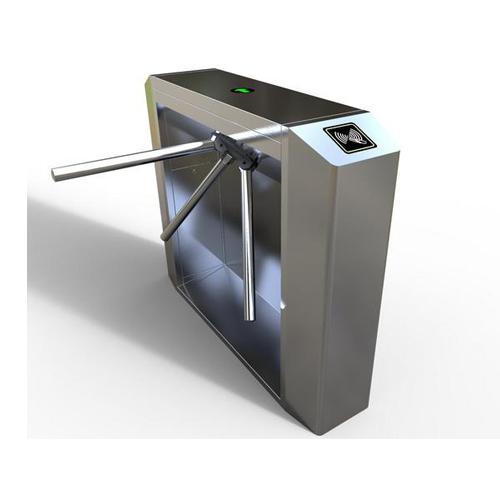

Tripod Turnstile Gate - Semi-Automatic and Full-Automatic Models

Our Tripod Turnstile Gate is an essential access control solution designed for high-traffic areas, providing robust security and efficient pedestrian flow. Available in both semi-automatic and full-automatic models, these turnstiles are ideal for a wide range of applications, including office buildings, factories, public transportation hubs, and leisure facilities.

Key Features:

• Durable Stainless Steel Construction: Made from 304 stainless steel, our tripod turnstiles are resistant to rust, corrosion, and are built to last.
• Space-Saving Design: The compact structure ensures optimal use of space in crowded areas while maintaining high security.
• Bidirectional Control: Both single-direction and bi-directional passage options are available to suit various security requirements.
• Automatic Reset Function: Equipped with a spring damper and balancing mechanism for stable, safe operation.
• LED Indicators: Ultra-bright LED lights provide clear directional guidance for users, ensuring smooth and safe passage.
• Memory Function: The system tracks the number of users passing through, locking the turnstile once the authorized individuals have passed.
• Emergency Release: In case of power failure, the arm automatically drops to allow for easy and fast evacuation.
• Anti-Tailgating: The system locks after each passage to prevent unauthorized tailgating or passage.
• Remote Control: Capable of remote operation via RS485 or TCP to manage and monitor access.
• Customizable Options: Available in brushed stainless steel or spray-painted finishes with color options.

Extended Features:

• Count Function: Optional counters track entry and exit statistics, perfect for high-traffic environments.
• Anti-Reversal: Prevents the turnstile from rotating backward after a person passes, preventing multiple people from entering with a single pass.
• Illegal Entry Alarm: The system sounds an alarm when unauthorized entry is detected, alerting security personnel immediately.
• Hydraulic Buffering: Optional hydraulic buffers reduce operational noise and ensure smooth, quiet motion.
• Access Limit: Software-controlled access restrictions ensure that only a certain number of people can pass through at a time.

Product Specifications:

• Power Supply: AC220V±20%, 50Hz
• Operating Temperature: -40°C to 70°C
• Relative Humidity: <95%, non-condensing
• Passage Speed: 30 persons per minute (with IC card)
• Input Interface: Standard switch signal
• Communication Interface: RS485 standard, with a communication distance of <1200m
• Motor Power: 20W/24V (for automatic models)
• Materials: 304 Stainless Steel or 316 Stainless Steel
• Color Options: Brushed stainless steel or spray-painted finish

Ideal Applications:

• Office Buildings: Ideal for controlling access in corporate environments, government buildings, and educational institutions.
• Public Transport Hubs: Perfect for use in metro stations, airports, bus stations, and train stations to manage passenger flow.
• Retail & Commercial Spaces: Suitable for shopping malls, supermarkets, and banks where controlled access is required.
• Leisure & Entertainment Venues: Perfect for theme parks, stadiums, and entertainment venues, ensuring smooth entry and exit during events.
