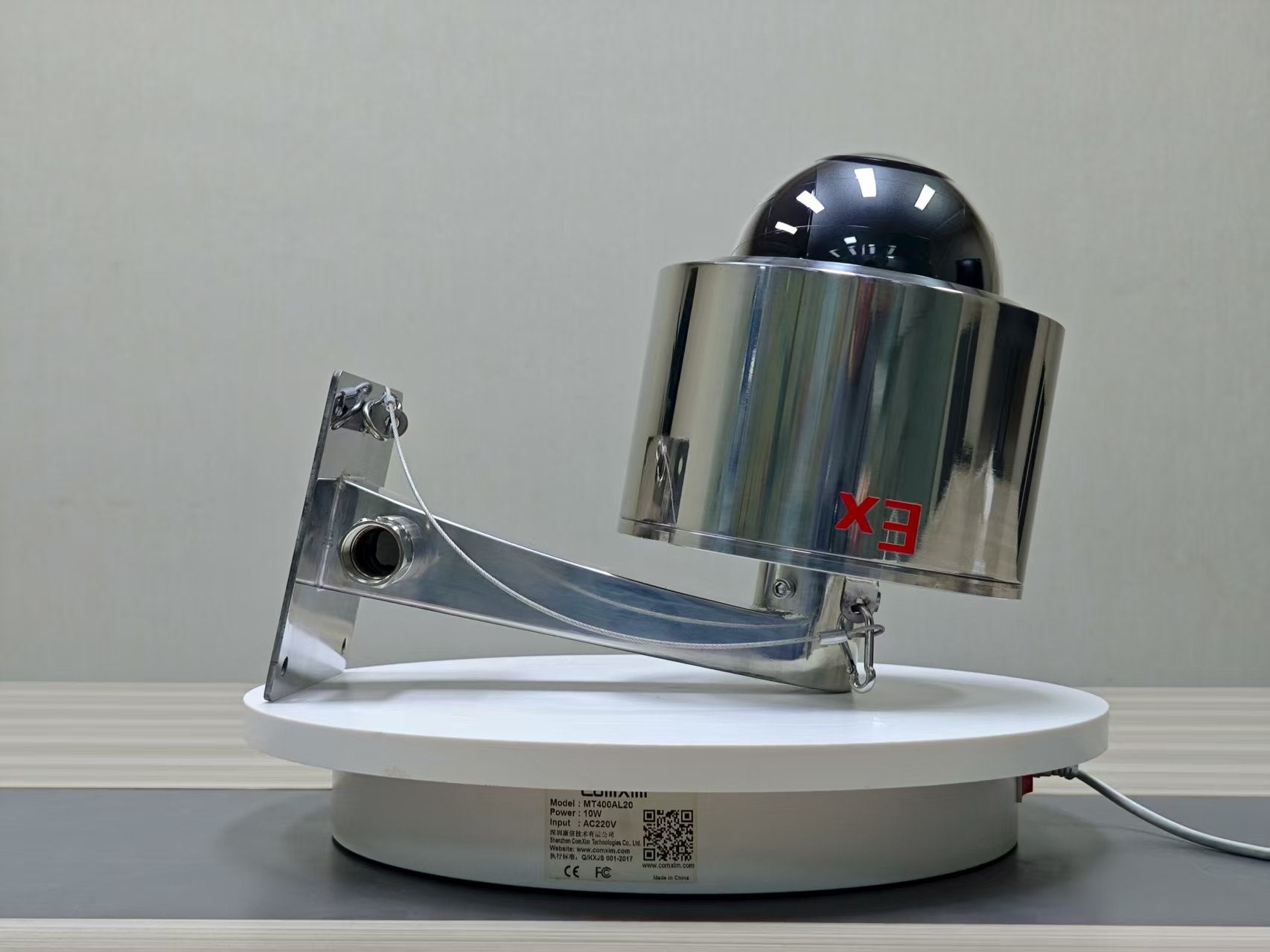

KSA-Ex700 Explosion-Proof 4MP 25x Zoom PTZ Camera

Core Performance (核心性能)

• High Resolution Imaging: Features a 1/2.8" Progressive Scan CMOS sensor delivering up to 4MP (2560 × 1440) high-definition resolution at 25/30 fps.
• Powerful Optical Zoom: Equipped with a 5mm to 125mm lens providing 25x Optical Zoom and 16x Digital Zoom for detailed long-range surveillance.
• Superior Low-Light Performance: Ultra-low light sensitivity with Color: 0.005 Lux and B/W: 0.001 Lux @ (F1.6, AGC ON).
• Advanced Image Enhancement: Supports 120dB True WDR, 3D DNR, BLC, HLC, and Defogging for clear visibility in various complex lighting and environmental conditions.

PTZ & Smart Features (云台与智能功能)

• Full Range Coverage: Supports 360° continuous horizontal rotation and a vertical tilt range of 0° to +90°.
• Intelligent Tracking & Detection: Features Smart Tracking (manual/auto), Region Intrusion Detection, Line Crossing Detection, and Face Detection.
• 3D Positioning: Allows users to quickly lock and capture targets via mouse-selected areas on the screen.
• Preset & Tasks: Supports up to 300 Presets, 8 Patrol Scans, and 4 Pattern Scans with scheduled task capabilities.

Network & Integration (网络与集成)

• Video Compression: Supports H.265/H.264/MJPEG encoding with Smart264/265 technology to optimize bandwidth and storage.
• Broad Protocol Support: Fully compatible with ONVIF, ISAPI, SDK, and GB/T28181 for seamless third-party system integration.
• Remote Management: Supports iVMS-4200 client and mainstream browsers (IE, Chrome, Firefox, Safari).

Mechanical & Environmental (机械与环境)

• Explosion-Proof Rating: Certified with Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db for maximum safety in hazardous zones.
• Rugged Construction: Built with SUS304 Stainless Steel (optional SUS316L) for superior corrosion resistance and efficient heat dissipation.
• Extreme Protection: IP68 rated waterproof and dustproof; TVS 6000V lightning, surge, and voltage spike protection.
• Operating Conditions: Reliable performance in temperatures from -30℃ to 60℃ and humidity below 95% RH.
• Power Supply: DC 12V (7W Max) and PoE (802.3at) support for flexible installation.
