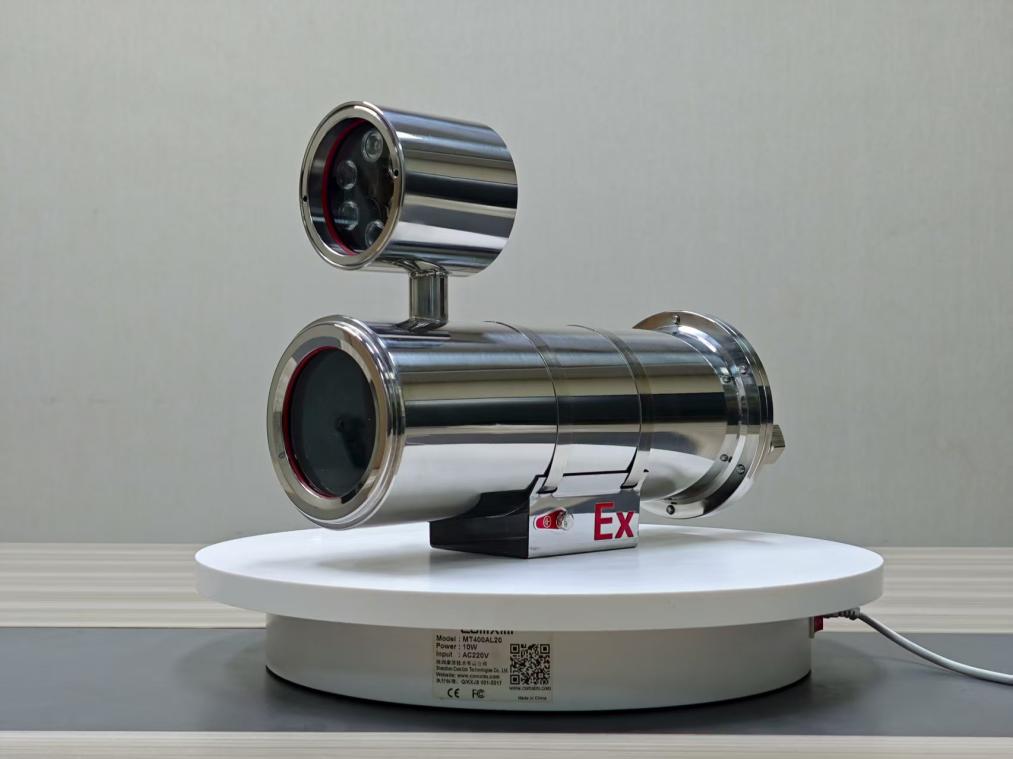

Explosion-proof Fixed Bullet Camera | SUS304 Stainless Steel & IP68 Rated

Key Features Overview

• Explosion-Proof Certification: Rated Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db for combustible gas and dust environments.

• High-Resolution Imaging: Delivers clear 1920 × 1080 @ 25fps video quality.

• Rugged Construction: Built with heavy-duty SUS304 Stainless Steel for extreme durability in corrosive environments.

• Advanced Night Vision: Efficient Dual-Light Supplement (IR & White Light) with an illumination distance of up to 60 meters.

Camera & Optical Performance

• Sensor Type: 1/2.7" Progressive Scan CMOS.

• Minimum Illumination: Color: 0.01 Lux @ (F1.2, AGC ON); B/W: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR.

• Wide Dynamic Range (WDR): Supports 120 dB True WDR for high-contrast lighting environments.

• Lens Options: Available in 4mm, 6mm, and 8mm fixed focal lengths with an F1.6 aperture.

• Image Enhancement: Features 3D DNR, BLC, HLC, Defog, and Corridor Mode for versatile monitoring.

Smart Analytics & Events

• Intelligence: Supports human and vehicle detection via Smart Event triggers including Line Crossing, Region Intrusion, Region Entrance/Exit, Unattended Baggage, and Object Removal detection.

• Behavior Analysis: Loitering detection, People gathering detection, and Fast-moving object detection.

Video & Network Standards

• Video Compression: Supports H.265 / H.264 / MJPEG and efficient Smart265/Smart264 encoding to save bandwidth.

• Network Protocols: Compatible with TCP/IP, IPv6, HTTPS, 802.1x, QoS, FTP, etc.

• System Integration: Fully compliant with ONVIF, GB28181 (2022), ISAPI, and SDK.

Mechanical & Environmental

• Ingress Protection: IP66/IP68 (2m/2h) rated for complete dust and water immersion protection.

• Operating Conditions: Reliable performance from -30 °C to 60 °C (Humidity < 95% non-condensing).

• Power Supply: Supports DC 12V (6W Max) and PoE (802.3af) (7W Max).

• Dimensions & Weight: 158.6 × 163.6 × 183 mm; Device weight: 4.9 kg.
