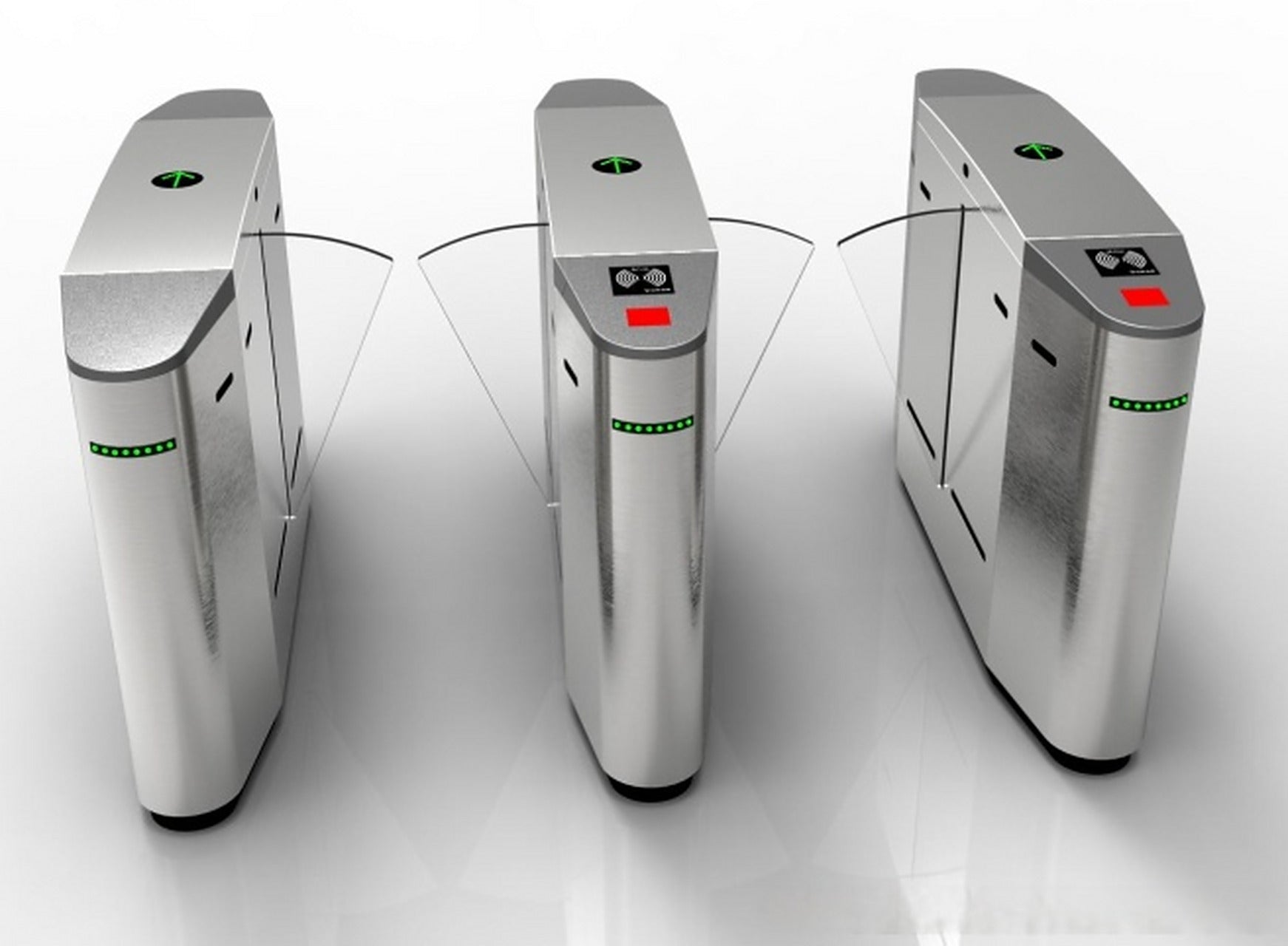

High-Quality 304 Stainless Steel Flap Barrier Gate | Intelligent Pedestrian Turnstile

Here is the technical specification and functional parameter list for your flap barrier, presented in clear, professional English text suitable for your product website or technical catalog.

Technical Specifications (Technical Parameters)

• Power Supply: AC 220V ± 20%, 50Hz

• Operating Temperature: -40℃ to 70℃

• Relative Humidity: Less than 95%, non-condensing

• Passage Speed: 40 persons per minute (IC Card)

• DC Motor: 20W/24V

• Input Interface: Standard switch signal

• Communication Interface: RS485 electrical standard (Communication distance < 1200 meters)

• Structure Material: 304 or 316 grade stainless steel

• Finish Options: Brushed stainless steel or powder-coated (customizable color)

Functional Parameters (Standard Features)

• Electronic Anti-Pinch: The flap will automatically stop if it detects a pedestrian during the closing sequence.

• DC Motor Drive: Employs a high-stability DC motor system with an automatic self-test function upon power-up, ensuring a low failure rate.

• LED Direction Indicators: Features ultra-bright LED lights to provide clear and intuitive passage guidance.

• Intrusion Alarm: The device will trigger an alarm if a pedestrian enters the lane without a valid card swipe.

• Reverse Entry Alarm: If a pedestrian attempts to move in the opposite direction after swiping, the system will trigger an alarm and close the gate.

• Anti-Tailgating Function: Prevents unauthorized entry by triggering an alarm if a second person follows a valid user without swiping a card.

• Control Modes: Configurable for "Always Open" mode during peak hours to accommodate high-volume traffic.

• Passage Options: Configurable for bi-directional swiping or single-sided swiping with free exit.

• Peripheral Compatibility: Supports external connection of push buttons, remote controls, barcode scanners, and IC/ID reader devices.

• Remote Control: Supports remote gate management via RS485 or TCP/IP communication interfaces.

• Automatic Reset: If a user does not pass through the gate within a set timeframe (1–60 seconds) after swiping, the system will automatically close the gate and cancel the access request.

Extended Functionality

• Soft Flap Option: Optional red or blue foam-padded flaps are available to enhance pedestrian safety.
