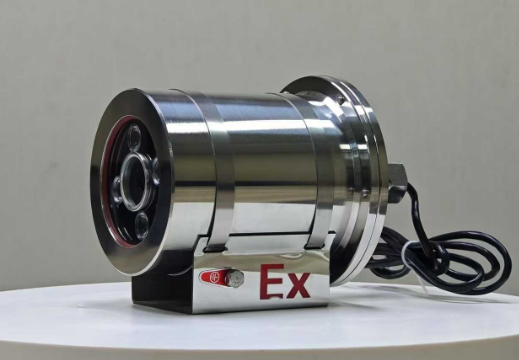

2-Megapixel 1/2.7-inch CMOS White-Light Full-Color Bullet-Style Explosion-Proof Camera

Key Feature Highlights:

• High Definition: Up to 1920 × 1080 @ 25fps real-time image output.

• Smart Analytics: Supports Line Crossing Detection and Region Intrusion Detection.

• Image Enhancement: Integrated 120dB True WDR, 3D DNR, BLC, and HLC for various lighting conditions.

• Night Vision: Dual-light mode with White Light (up to 30m) and IR (up to 50m).

Camera & Lens

• Sensor Type: 1/2.7" Progressive Scan CMOS

• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON)

• Shutter Speed: 1/3 s to 1/100,000 s

• Wide Dynamic Range (WDR): 120 dB

• Day & Night: ICR Cut Filter

• Aperture: Fixed, Max F1.6

• Focal Length Options:

  • 2.8 mm: Horizontal FOV: 108°, Vertical FOV: 59°

  • 4 mm: Horizontal FOV: 87°, Vertical FOV: 46°

  • 6 mm: Horizontal FOV: 54°, Vertical FOV: 29°

  • 12 mm: Horizontal FOV: 23°, Vertical FOV: 13°

Video & Audio

• Max Resolution: 1920 × 1080 (2MP)

• Video Compression: H.265 / H.264 / MJPEG (Main & Sub-stream)

• Video Bitrate: 32 Kbps to 8 Mbps

• Audio Interface: Built-in Microphone with environment noise filtering.

• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / AAC-LC

Network & Integration

• Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, NTP, IPv6, etc.

• API: Open-ended Network Video Interface, ISAPI, SDK, GB28181.

• Simultaneous Live View: Up to 6 channels

• User Management: Up to 32 users (Admin, Operator, User levels).

General Specifications

• Protection Level: IP68 (Dust-tight and Waterproof)

• Operating Conditions: -30 °C to 60 °C, Humidity < 95% (non-condensing)

• Power Supply:

  • DC: 12 V ± 25% (Reverse polarity protection)

  • PoE: IEEE 802.3af, Class 3

• Power Consumption: Max 7.5W (via PoE) / 6.5W (via DC 12V)

• Material: High-durability explosion-proof housing.

• Weight: 5800g to 5905g (Heavy-duty industrial grade)
