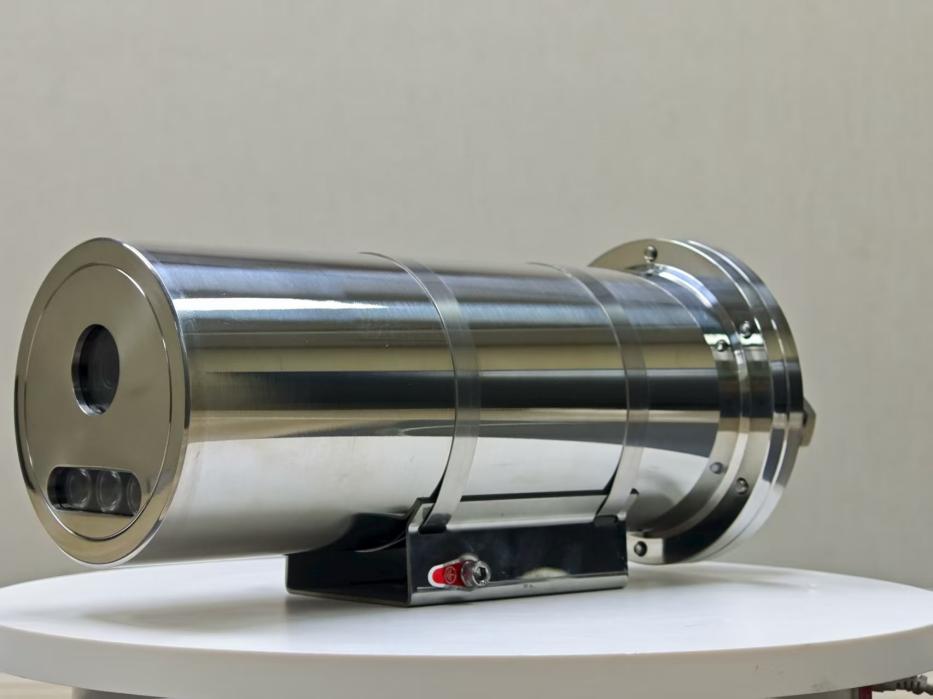

4MP Explosion-Proof Fixed Focal Bullet Camera | IP68 SUS304 Stainless Steel CCTV
4MP Explosion-Proof Fixed Focal Bullet Camera | IP68 SUS304 Stainless Steel CCTV
Industry Key Terms: Explosion-proof (Ex db), Intrinsically Safe equivalent, 4MP Fixed Lens, SUS304 Housing, IP68 Protection.
High-Definition Imaging & Optics
-
Sensor Technology: Equipped with a 1/2.7" Progressive Scan CMOS sensor, delivering crisp 1920 × 1080 @ 25fps real-time imagery.
-
Exceptional Low-Light Sensitivity: Color: 0.01 Lux @ (F1.2, AGC ON); B/W: 0.005 Lux @ (F1.2, AGC ON), and 0 Lux with IR.
-
Fixed Focal Lens Options:
-
4 mm @F1.6: Horizontal FOV 87.2°, Diagonal FOV 104.8°.
-
6 mm @F1.6: Horizontal FOV 53.9°, Diagonal FOV 62.8°.
-
8 mm @F1.6: Horizontal FOV 41.1°, Diagonal FOV 48.0°.
-
-
Image Enhancement: Supports 120 dB True WDR, 3D Digital Noise Reduction, BLC, HLC, Defog, and Corridor Mode for diverse monitoring scenarios.
Advanced Security & Smart Analytics
-
Dual-Light Supplement: Features a high-efficiency dual-light system (IR and White Light). Maximum IR range reaches 60m, while white light provides color illumination up to 30m (on 6/8mm models).
-
Smart Event Detection: Comprehensive analytics suite including Line Crossing, Region Intrusion, Region Entrance/Exit, Unattended Baggage, and Object Removal detection.
-
Behavioral Analysis: Supports loitering detection, people gathering, and fast-moving object detection.
Video & Network Standards
-
Compression Technology: Efficient H.265 / H.264 / MJPEG encoding with support for Smart265/Smart264 and SVC (Scalable Video Coding) to save bandwidth.
-
Network Protocols: Supports a wide array of protocols: TCP/IP, IPv6, HTTPS, 802.1x, QoS, FTP, etc.
-
System Integration: Fully compliant with Open-ended Network Video Interface, GB28181 (2022), ISAPI, and SDK for seamless platform management.
Industrial Reliability & Hardware
-
Explosion-Proof Certification: Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db; certified for combustible gas and dust environments.
-
Rugged Construction: Encased in high-grade SUS304 Stainless Steel for extreme corrosion resistance.
-
Ingress Protection: IP66/IP68 (2m/2h) rated for complete dust and water immersion protection.
-
Power Versatility: Supports DC 12V and PoE (802.3af, Class 3) for flexible field deployment.
-
Operational Durability: Functions in extreme temperatures from -30 °C to 60 °C with humidity below 95%.
