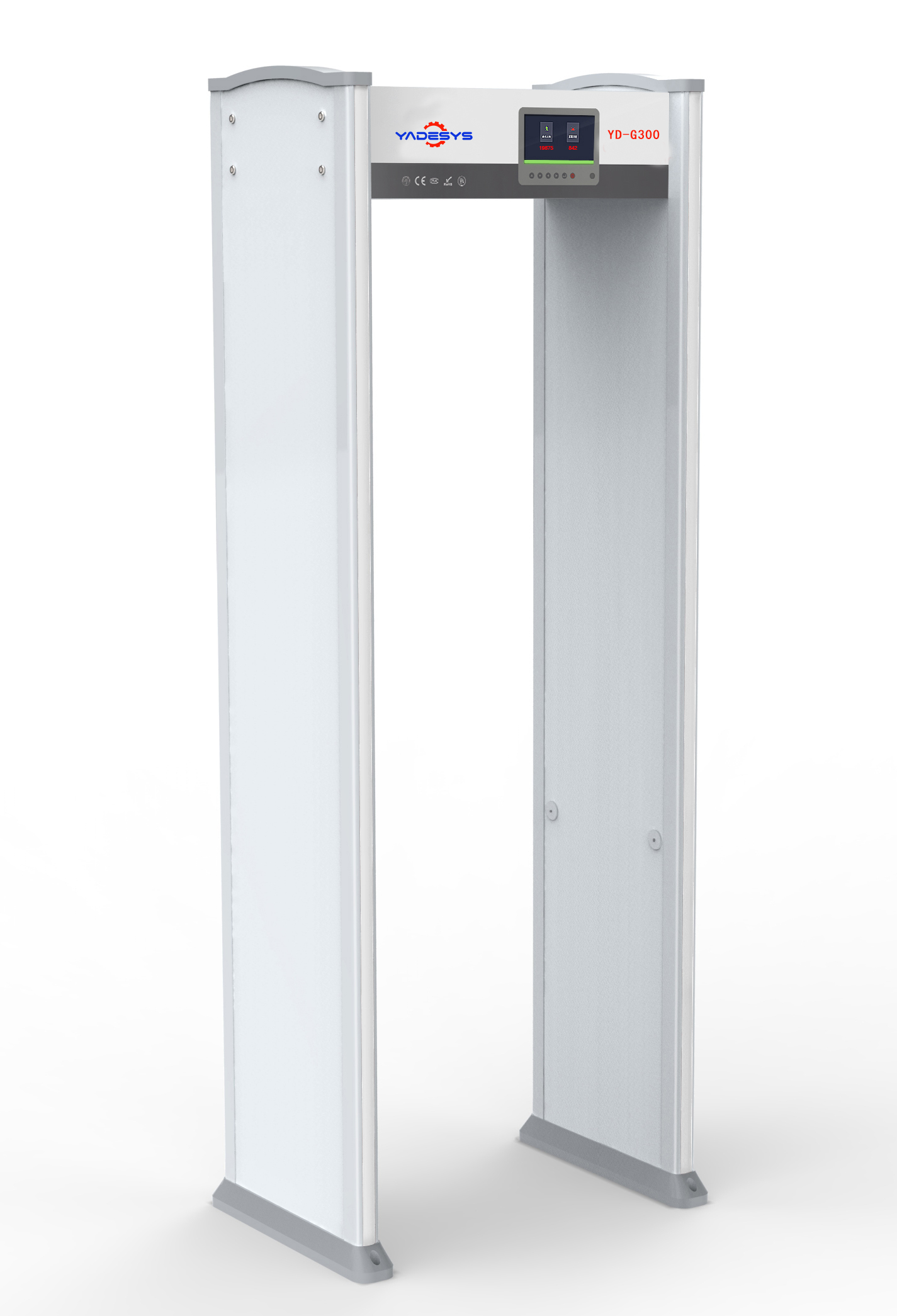

Metal detector gate

Enhanced Multi-Zone Metal Detector: Redefining Precision Security Screening

Product Overview

Our Enhanced Multi-Zone Metal Detector represents the next generation of walk-through security screening technology. It surpasses the single-alarm mode of traditional metal detectors by utilizing precise zonal detection and intelligent analysis, providing users with unprecedented pinpoint accuracy, high throughput, and exceptional anti-interference capability. This product is an indispensable tool for protecting critical infrastructure, maintaining public safety, and securing large-scale events.

Working Principle

The device operates based on the principle of electromagnetic induction. Panel transmitters on both sides of the arch generate a continuous, stable, low-frequency electromagnetic field, creating a uniform detection area. When a metal object passes through this field, it induces eddy currents that disturb the original field. The highly sensitive sensors inside the device instantly capture this minute change, and the built-in microprocessor performs digital signal analysis to accurately determine the size and location of the metal object, ultimately triggering the corresponding high-brightness LED alarm indicator.

Core Technology: By vertically dividing the entire detection area into 6, 12, or 18 independent detection zones, each with its own sensor and individually programmable sensitivity, the system achieves a qualitative leap from simply detecting "a person with metal" to identifying "exactly where on the person the metal is located."

Product Features



Pinpoint Zone Localization:

Configurable with 6, 12, or 18 independent detection zones.

Each zone's sensitivity can be individually adjusted (supports adaptive adjustment technology), allowing for the ignoring of everyday items like belt buckles or small jewelry while maintaining high sensitivity to threat items.

High-brightness LED indicators visually display the alarm zone, precisely identifying the location of concealed prohibited items.

Intelligent Operation & Display:

A 7-inch large LCD screen provides a clear graphical interface, displaying metal mass (bar graph), alarm zone, passenger count, and ambient interference level.

Supports bilingual menu switching (English/Chinese) for intuitive operation.

Exceptional Anti-Interference & Performance:

Up to 100 selectable operating frequencies ensure multiple units can be installed side-by-side (as close as 50 cm) without mutual interference.

Real-time monitoring of background environmental interference, displayed on-screen to aid installation and debugging.

72 built-in professional detection programs for different scenarios (airports, courthouses, schools, etc.) for one-touch activation.

Robust Data Management & Security:

Bidirectional counting function reliably records the number of passersby and alarm incidents, providing data for security management.

Password protection system prevents unauthorized parameter changes.

Sleep and Auto-Wake function automatically enters low-power sleep mode during inactivity and instantly activates when someone approaches, saving energy.

Professional Detection Modes & Alarm Methods:

Can distinguish between ferrous (black metals) and non-ferrous metals, providing additional clues to identify the type of metal object.

Dual-side LED diffusion alarm visually indicates the relative size of the metal object by the number of lit LED segments.

Alarm sound level >90 dB, with configurable light and sound patterns.

High-Reliability Design & Safety Assurance:

Constructed from high-strength materials, offering fireproof, corrosion-resistant, and shockproof properties for harsh environments.

Completely safe for humans, harmless to pacemaker wearers, pregnant women, and magnetic media (e.g., bank cards).

Application Scenarios

Transportation: Airport terminals, railway stations, metro stations, ports.

Government & Judicial Institutions: Courthouses, parliament buildings, government offices, prisons, embassies.

Public Events & Commercial Venues: Stadiums, concert halls, exhibition centers, schools, hospitals, large factories, amusement parks.

Critical Infrastructure: Power plants, data centers, museums, bank vaults.

Frequently Asked Questions (FAQ)

Q5: Is the Enhanced Multi-Zone Metal Detector safe for individuals with pacemakers or pregnant women?
A: Absolutely safe. The electromagnetic field generated by this Enhanced Multi-Zone Metal Detector is low-frequency and low-power, fully compliant with all international safety standards. It has no effect on pacemaker wearers, pregnant women, or items like credit cards and phones.

Q6: How does the counting function of the Enhanced Multi-Zone Metal Detector work?
A: The device uses infrared sensors on both sides to achieve bidirectional people counting. Regardless of the direction of passage, it accurately records the total number of passersby and the number of alarms triggered, which can be viewed on the screen in real-time for passenger flow statistics and security efficiency evaluation.
