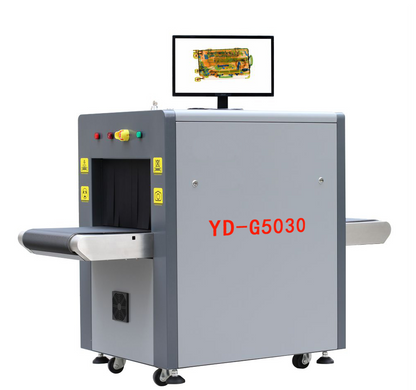

AI-powered security scanner



Equipment features:

◆ The imaging is clear and the image resolution is up to 1920*1080P, which is absolutely leading in China;

◆ A variety of precise classifications of the atomic number of substances, with seven colors to display different substances;

◆ Customer can customize the alarm function of dangerous substances, such as: dangerous liquids, explosives, drugs, guns, knives and other dangerous substances customized by customers;

◆ The modular design is adopted, and the test and diagnosis functions of key components such as X-ray source, detector array and keyboard are provided, so that the equipment fault diagnosis and maintenance can be more accurate and fast;

◆ Based on the computer platform, it provides remote collaborative inspection mode with network application as the carrier, as well as image transmission and centralized storage functions;

◆ Provide dangerous goods image insertion function (TIP function) to facilitate the training and assessment of operators' image recognition ability;

◆ Conveyor speed 0.2~0.4m/s

◆ High sensitivity energy saving induction device: release the condom belt and run, without the condom belt stop automatically

◆ Two-way scanning: can be repeatedly detected on the same object.

Basic technical indicators

◆ Channel size: (width) 500mm* (height) 300mm

◆ Beam direction: bottom view

◆ Conveyor belt speed: 0.2 m/s (adjustable)

◆ Belt load: 150kg (evenly distributed)

◆ Penetrability: steel plate of ≥43mm (meeting the national standard class A)

◆ Line resolution: 40AWG (Φ0.0787 mm solid copper wire)

◆ Spatial resolution: horizontal/vertical 1.0mm

◆ Radiation leakage dose rate: <0.3μGy

◆ Image storage: more than 800,000 images

◆ Batch conversion of image formats: BMP, JPG, PNG and other formats

X-ray generator related parameters

◆ Voltage: 140KV

◆ Current: 0.3-1.0mA

◆ Cooling mode: oil cooling 100%

◆ Angle of beam emission: 80 degrees

Image system

◆ ◆ High energy penetration: high energy penetration is displayed

◆ Color/black and white images: Switch between color/black and white images

◆ Reverse color function: Smaller or thinner high-density objects (such as metal wires) will become clearer

◆ Pseudo-color function: six pseudo-colors can be switched at will

◆ Image sharpening: Edge sharpening effect

◆ Image smoothing: make the brightness of the image change gradually, reduce the gradient of abrupt change, and improve the image quality

◆ Image magnification: Zoom in on any selected area of the image at 64 times

◆ Image retrieval: image playback search

◆ Image pullback: Display the image that has passed

◆ High density alarm: alarm for high density material (HDA)

◆ Auxiliary alarm for dangerous goods: customize the alarm setting for dangerous goods

◆ Logarithmic transformation: Expand the dark pixels in the compressed high-value image

◆ Index transformation: opposite to logarithmic transformation, expand the high gray level of the image and compress the low gray level.

◆ Super enhancement: Non-linear stretching of the image and redistribution of the pixel values of the image are used to enhance the contrast of the whole image

Installation parameters

◆ Operating temperature/humidity: -0℃~+45℃/10~95% (no condensation)

◆ Storage temperature/temperature: -20℃ ~ +50℃/10%~95% (no condensation)

◆ Operating voltage: 220V (-15~+10%), 50Hz±3Hz

◆ Power supply: 2.5 KVA

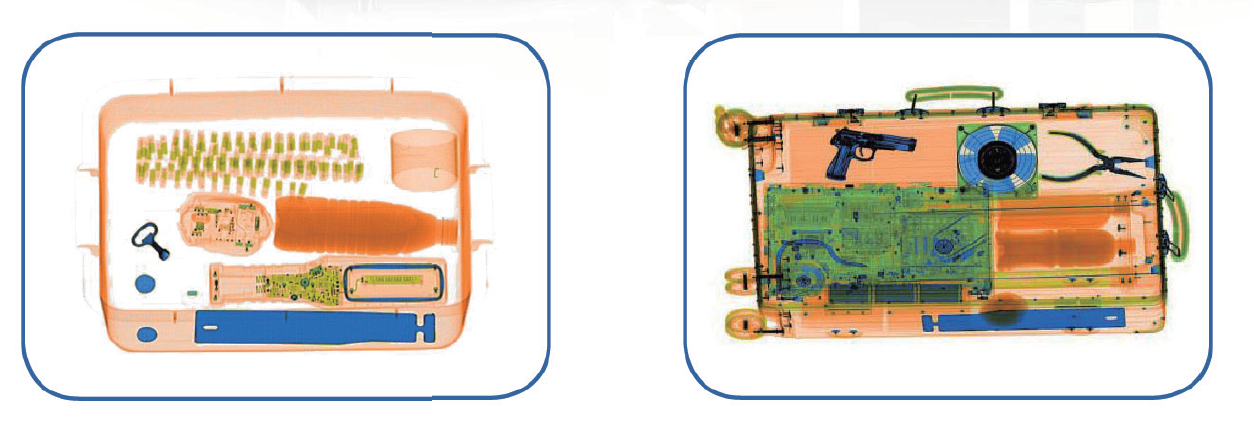

Effect of detection
